姜谷粉丝 2026-06-05 09:31



  • 设计单位


    Picharchitects/Pich-Aguilera


  • 地址


    西班牙


  • 建筑面积


    11326 m²


  • 项目年份


    2025


  • 摄影


    Aldo Amoretti

Delta商务中心重新定义了企业建筑的战略价值:这是一座旨在降低运营成本、适应未来变化并保值增值的建筑。
Delta Business Center redefines the corporate building as a strategic asset: a structure designed to reduce operating costs, adapt to future change, and preserve long-term value.

该项目位于新兴城市肌理中的原沼泽地,原始地形和植被仍部分得以保留。周围的街道高出地块,形成一个封闭的景观环境,宛如城市内部的一个天然盆地。
The project is located on a former marshland site within an emerging urban fabric, where the 900 topography and vegetation are still partially preserved. The surrounding urban streets sit above the plot, creating a contained landscape condition that acts as a natural basin within the city.

主要挑战在于如何在生态延续性与高性能企业建筑的要求之间取得平衡,以应对不断变化的商业模式、监管压力以及日益增长的运营成本。
The main challenge was to reconcile ecological continuity with the requirements of a high-performance corporate building capable of responding to evolving business models, regulatory pressure, and increasing operational costs.

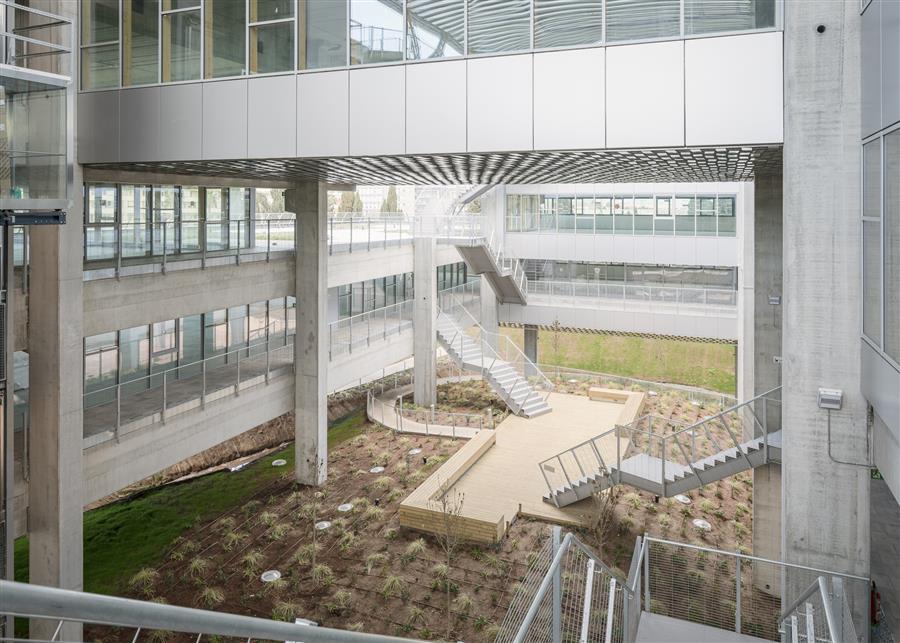

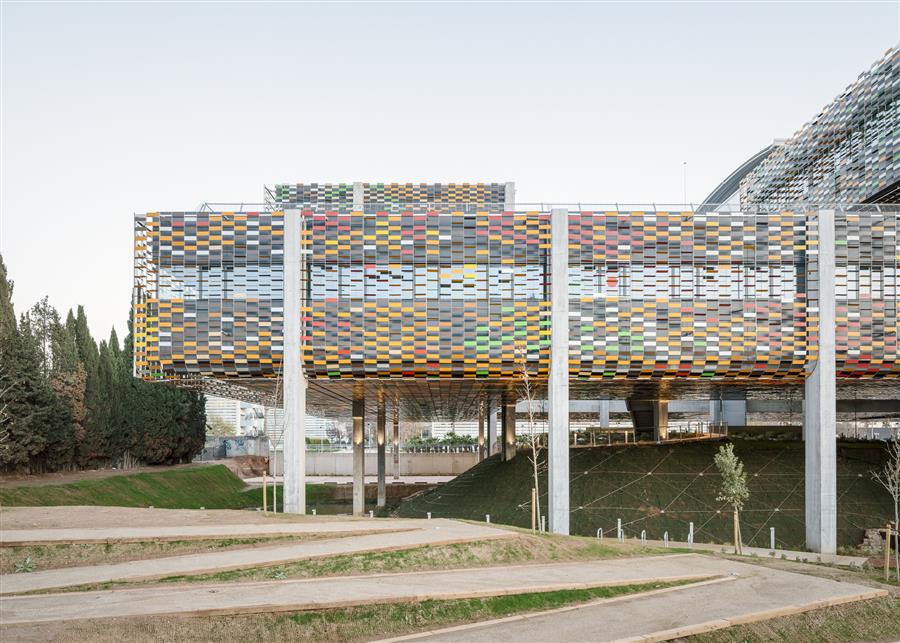

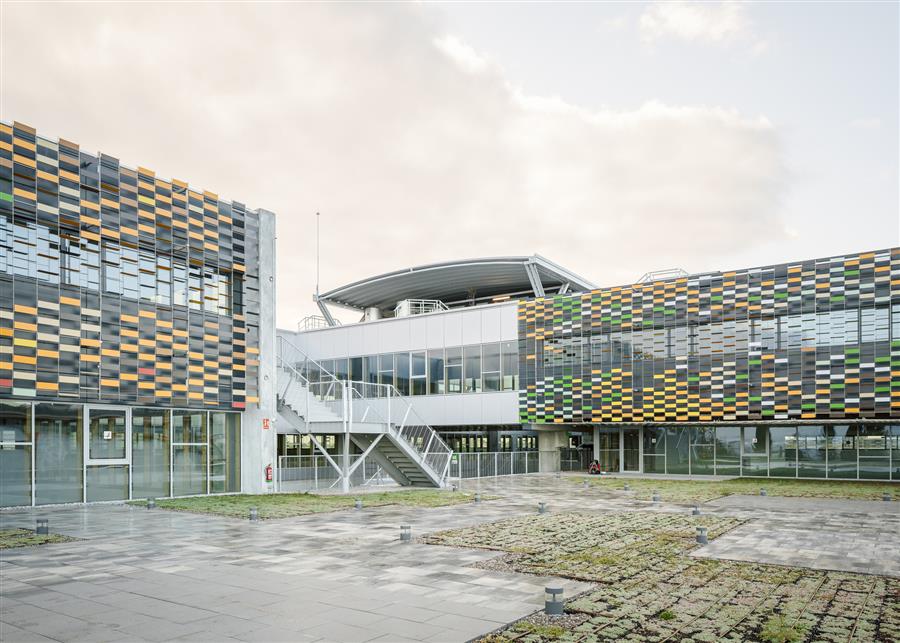

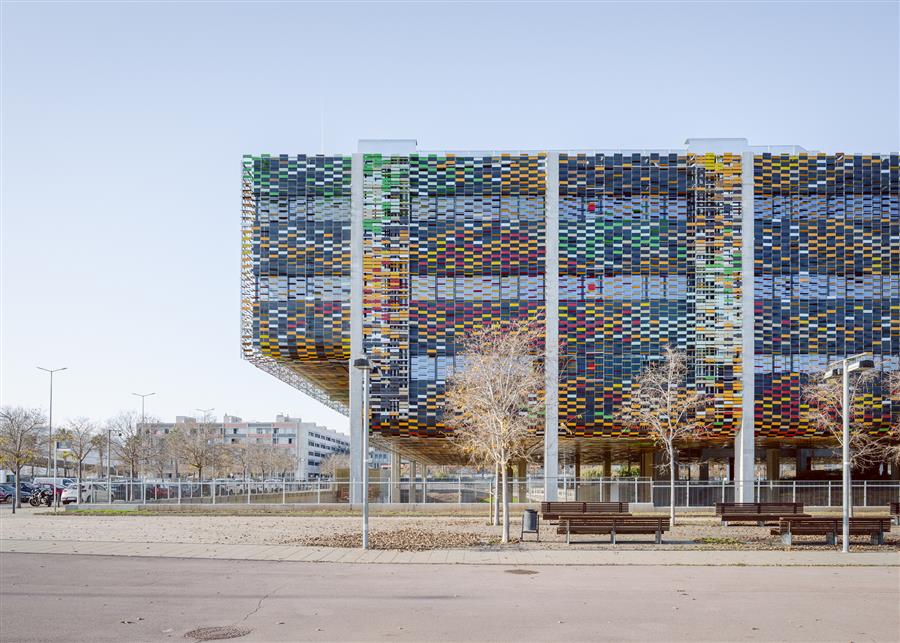

该建筑被设计为一个悬挑体量,使建成部分高悬于地面之上,从而释放出下方的景观空间。这一设计将底层转变为一个主动的气候基础设施,实现自然水管理、生态连续性以及改善的热性能。地面层则成为一种高效的环境系统,而非仅是闲置的空间。
The building is conceived as a suspended volume that lifts the built form above the ground, freeing the landscape below. This decision transforms the lower level into an active climatic infrastructure, enabling natural water management, ecological continuity, and improved thermal behavior. The ground plane becomes a productive environmental system rather than residual space.

在这一景观层之上,项目引入了一种开放且不具约束性的空间系统,旨在适应未来的变化,而不会造成结构或经济上的中断。办公空间被组织为灵活的平台,拥有充足的自然采光和良好的环境品质,并通过外部步道、露台以及中央的生物气候庭院相互连接。这种布局将工作场所延伸至室内之外,促进互动交流,同时允许企业随时间推移进行空间规模调整、重组或转型,从而显著降低过时风险。

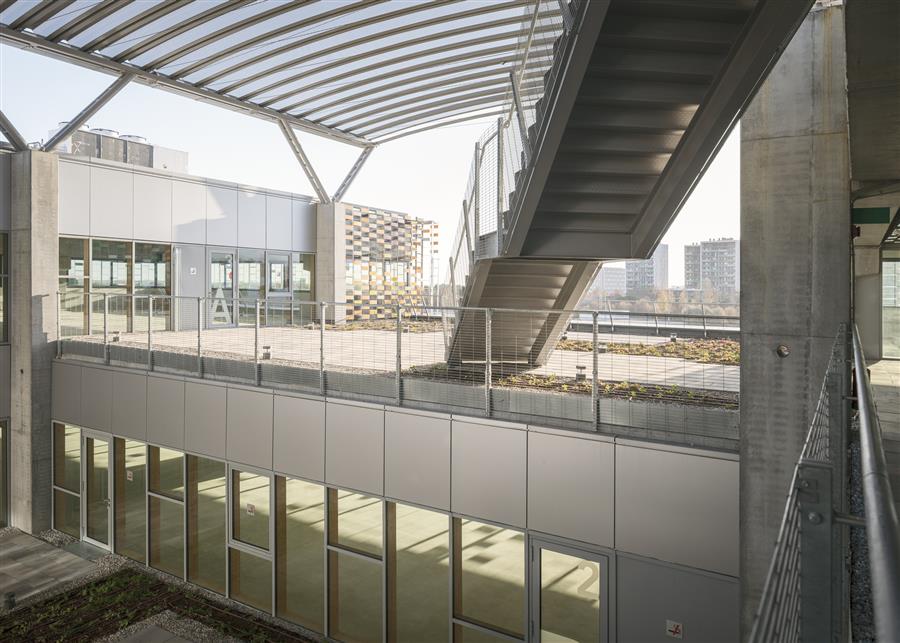

Above this landscape layer, the project introduces an open and non-prescriptive spatial system designed to accommodate future change without structural or economic disruption. Office spaces are organized as flexible platforms with high levels of natural light and environmental quality, connected through exterior walkways, terraces, and a central bioclimatic courtyard. This configuration extends the workplace beyond the interior, promoting interaction while allowing companies to scale, reorganize, or transform their spatial needs over time, significantly reducing obsolescence risk.

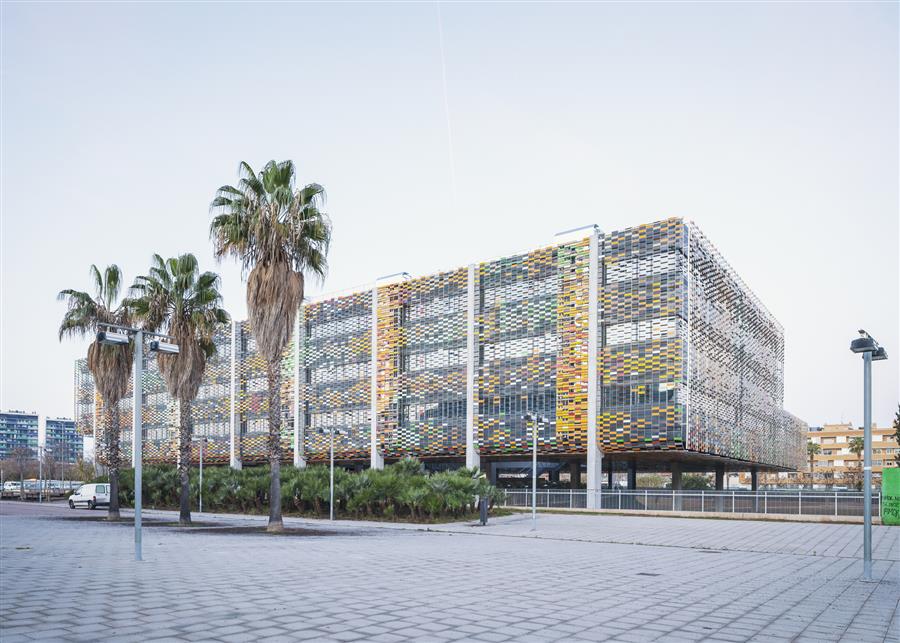

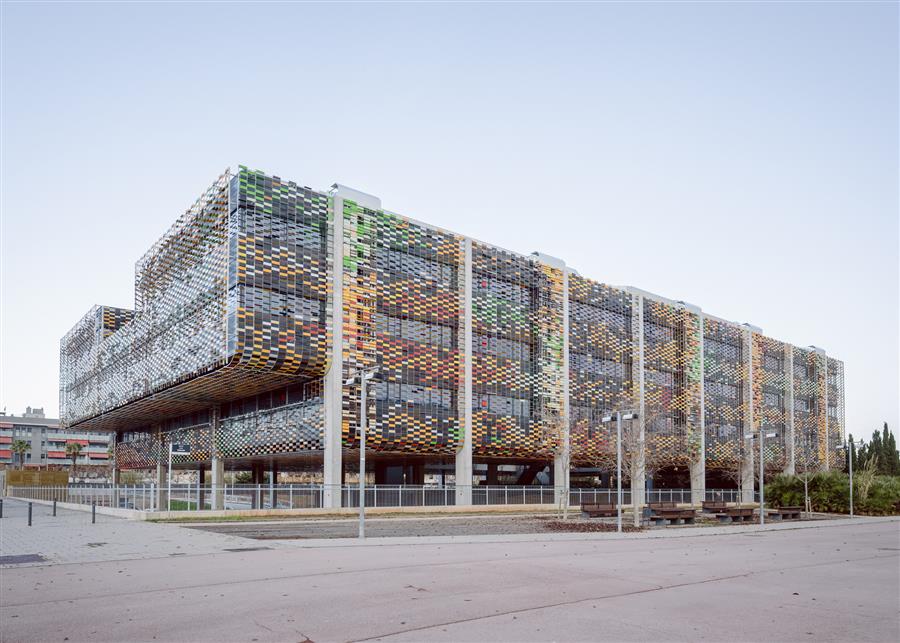

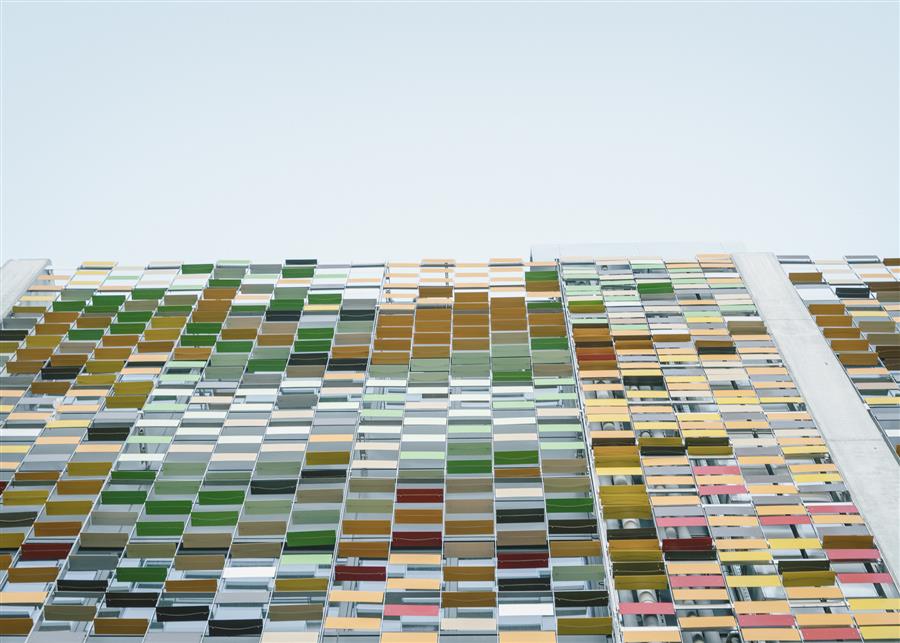

建筑立面采用全工业化设计,由多层金属构件构成,可过滤太阳辐射并优化自然采光条件。该建筑体系将多个专业工艺整合于协调有序的分层结构中,通过数字化控制和预制装配工艺,提高了施工精度,缩短了工期,并最大限度地减少了材料浪费。
The facade is fully industrialized and composed of layered metallic elements that filter solar radiation and optimize daylight conditions. The construction system integrates multiple trades within a coordinated, stratified structure, improving precision, reducing construction time, and minimizing material waste through digital control and prefabricated assembly processes.
性能由详细的数字能源模型驱动,该模型为被动式和主动式策略提供了依据。优化的建筑外立面设计、太阳能控制系统、自然通风以及高效技术(如智能照明、二氧化碳传感器和光伏发电)共同作用,使运营能耗比参考建筑降低53%,年用电量减少38%。被动式环境调节在一年中最多可实现30%的节能效果,显著降低了运营成本。
Performance is driven by a detailed digital energy model that informed both passive and active strategies. Optimized envelope design, solar control systems, natural ventilation, and high-efficiency technologies—such as smart lighting, CO₂ sensors, and photovoltaic generation—enable a 53% reduction in operational energy consumption and a 38% reduction in annual demand compared to a reference building. Passive conditioning is effective for up to 30% of the year, significantly lowering operational costs.

水资源与景观策略有助于提升环境绩效。低耗水的地中海植被、可持续的排水系统以及现场蓄水措施,能够改善微气候条件,减轻热岛效应,降低资源需求,同时促进本地生物多样性。
Water and landscape strategies reinforce environmental performance. Low-consumption Mediterranean vegetation, sustainable drainage systems, and on-site water retention improve microclimatic conditions, reduce heat island effect, and minimize resource demand while supporting local biodiversity.
该项目采用先进的循环经济理念,将建筑设计为可逆且可灵活调整的系统。所选材料具备耐久性、可追溯性和可再利用性,便于未来拆解和重新配置。该方法使建筑的固有碳排放减少48%,循环潜力提升35%,同时符合欧洲分类法(European Taxonomy)、LEVEL(s) 和LEED框架标准,有效降低了长期的监管风险。
The project adopts an advanced circular economy approach, conceiving the building as a reversible and adaptable system. Materials are selected for durability, traceability, and reuse potential, allowing future disassembly and reconfiguration. This approach results in a 48% reduction in embodied carbon and a 35% circularity potential, aligning the project with European Taxonomy, LEVEL(s), and LEED frameworks while reducing long-term regulatory exposure.

Delta商务中心展示了建筑如何作为经济和战略工具发挥作用。通过整合灵活性、环境性能和施工效率,该项目降低了成本,减轻了风险,并提升了资产的长期价值,成为未来企业发展的可持续典范。
Delta Business Center demonstrates how architecture can operate as an economic and strategic tool. By integrating flexibility, environmental performance, and construction efficiency, the project reduces costs, mitigates risk, and enhances long-term asset value, positioning itself as a resilient model for future corporate development.

技术图纸

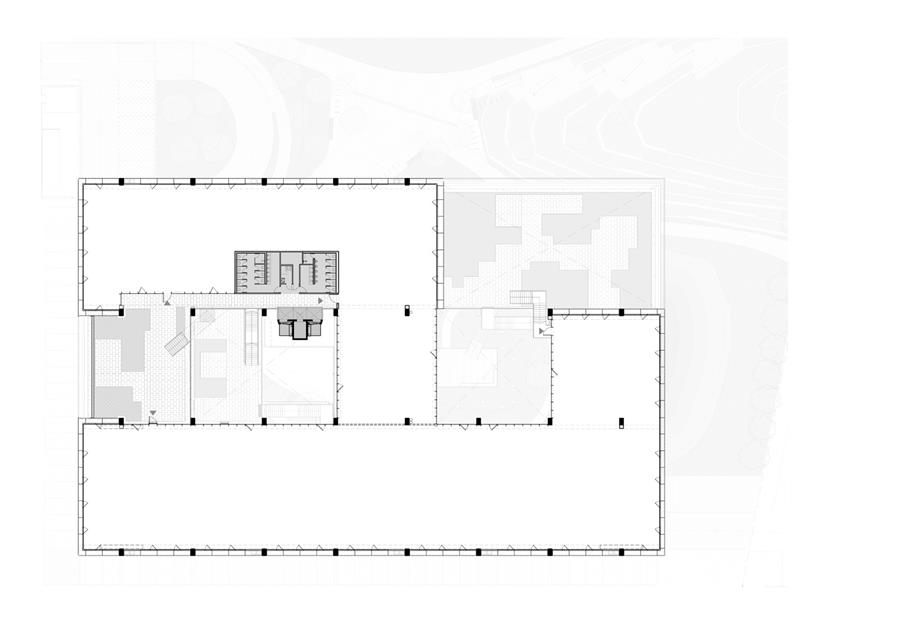

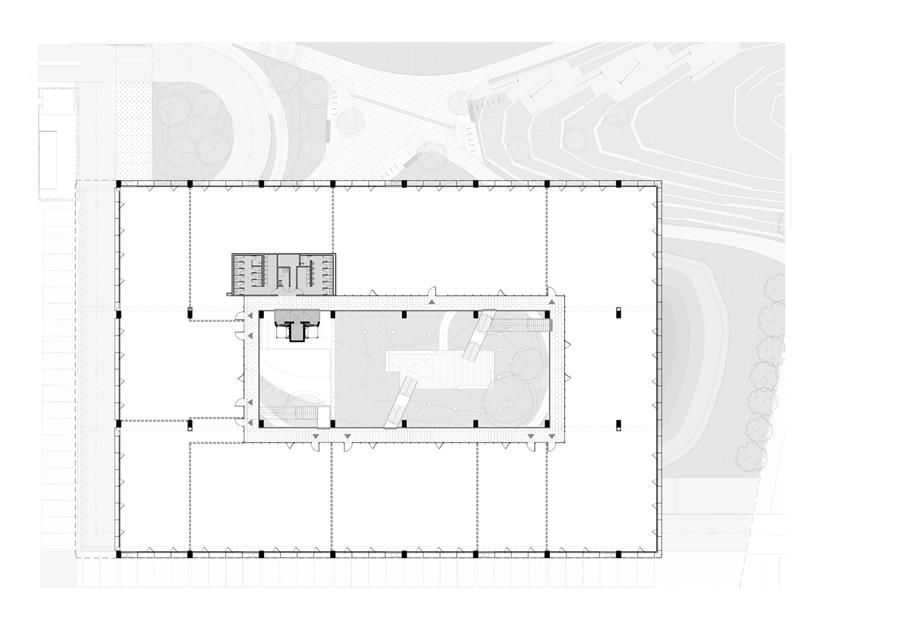

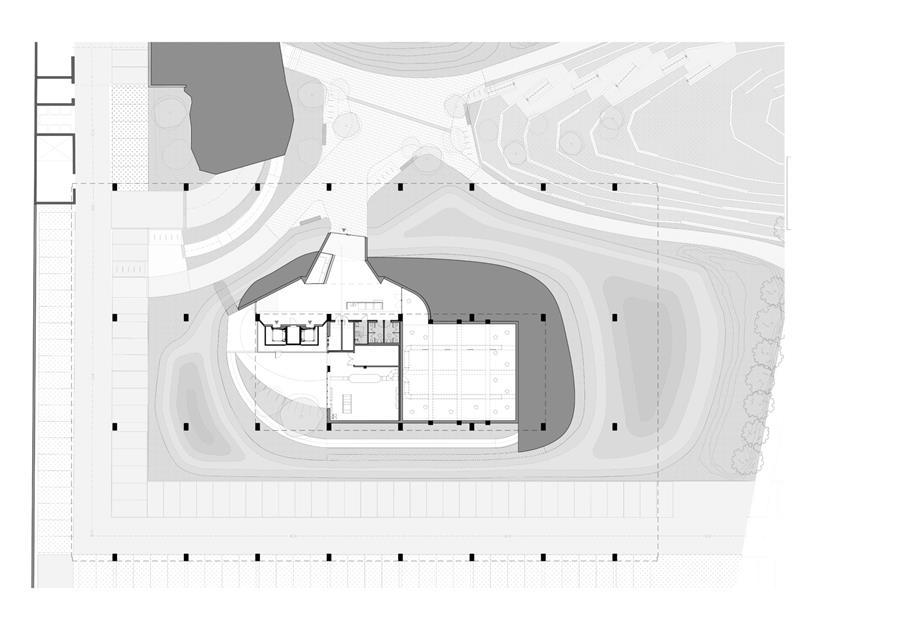

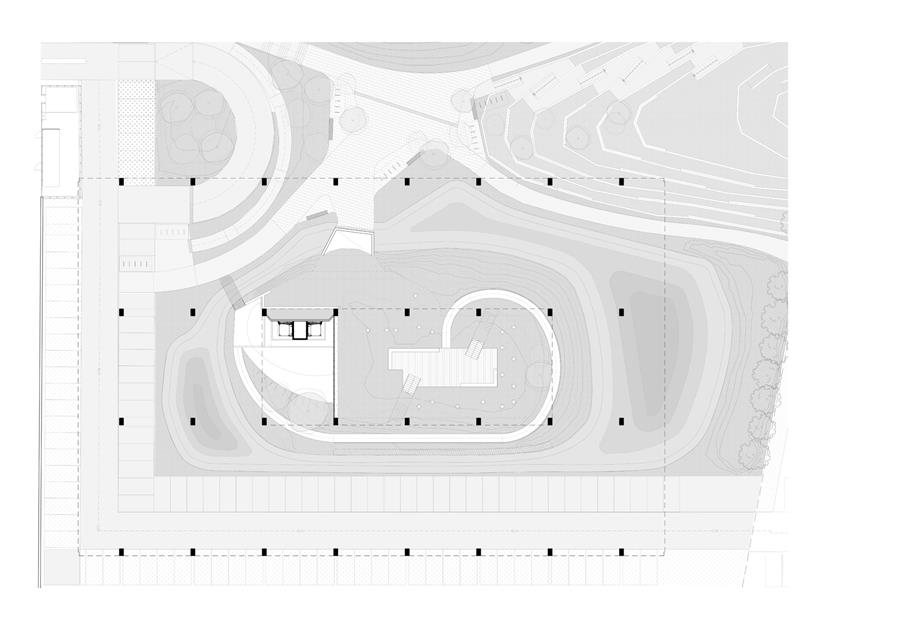

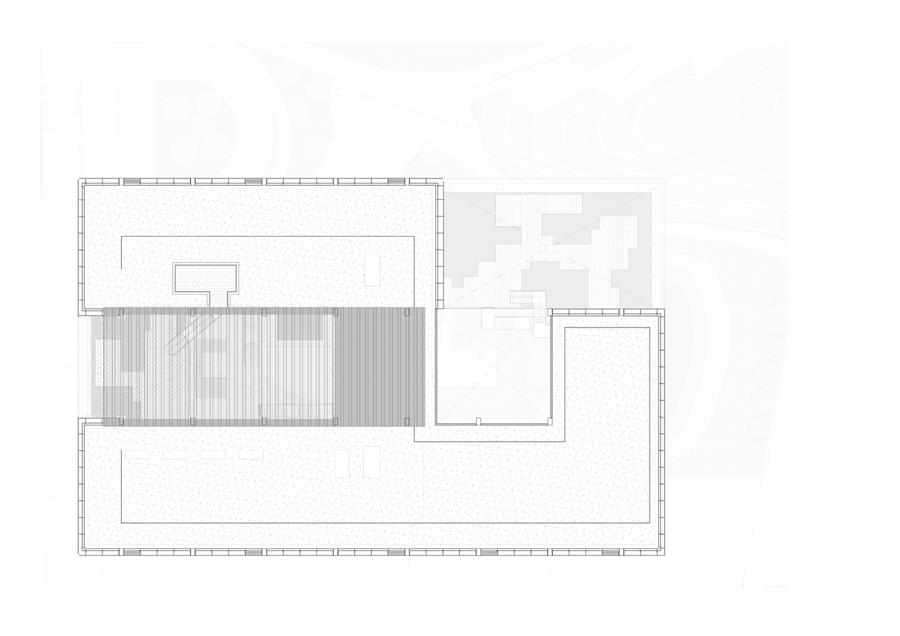

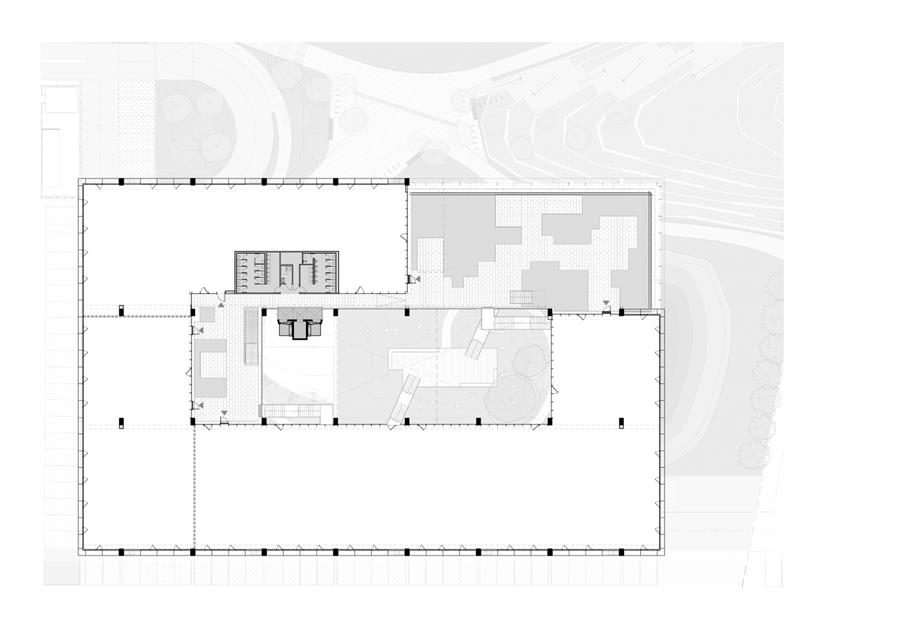

▲平面图

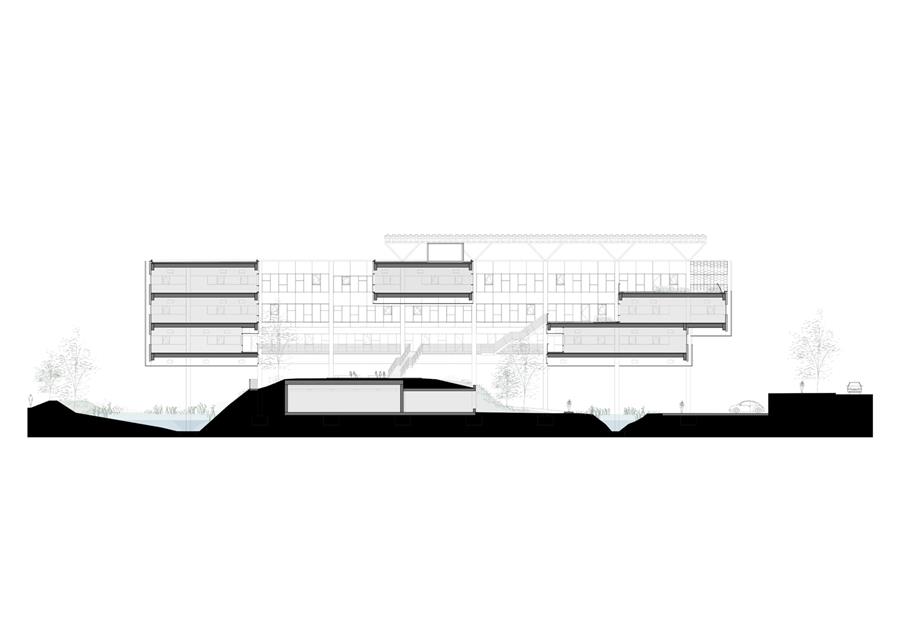

▲剖面图

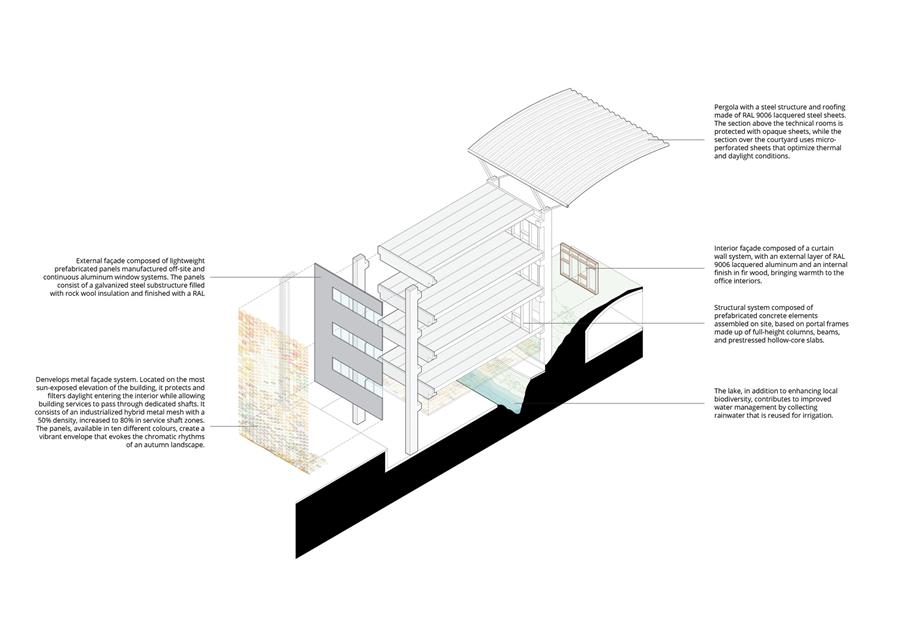

▲示意图




正是高品质的建筑设计、可持续发展理念、所提供的舒适环境、良好的沟通能力以及场所的用途等多方面的综合因素,使得“创新之家”对于员工以及城市环境而言都具有如此重要的意义。It is the sophisticated synthesis of high-quality architecture, the concept of sustainability, the comfort offered, the communicative ability, and the purpose of a place that makes the Maison de l'Innovation so important for employees and the urban context.

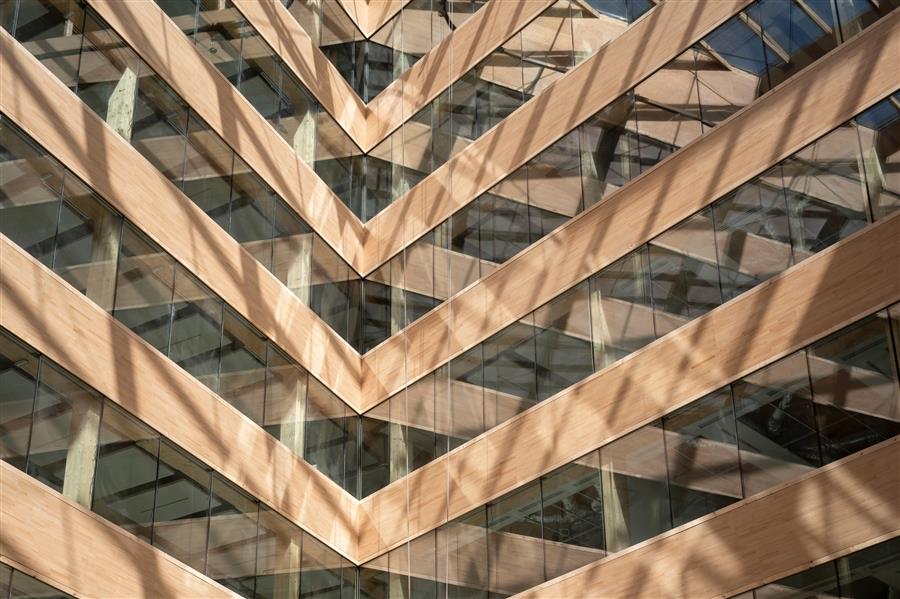

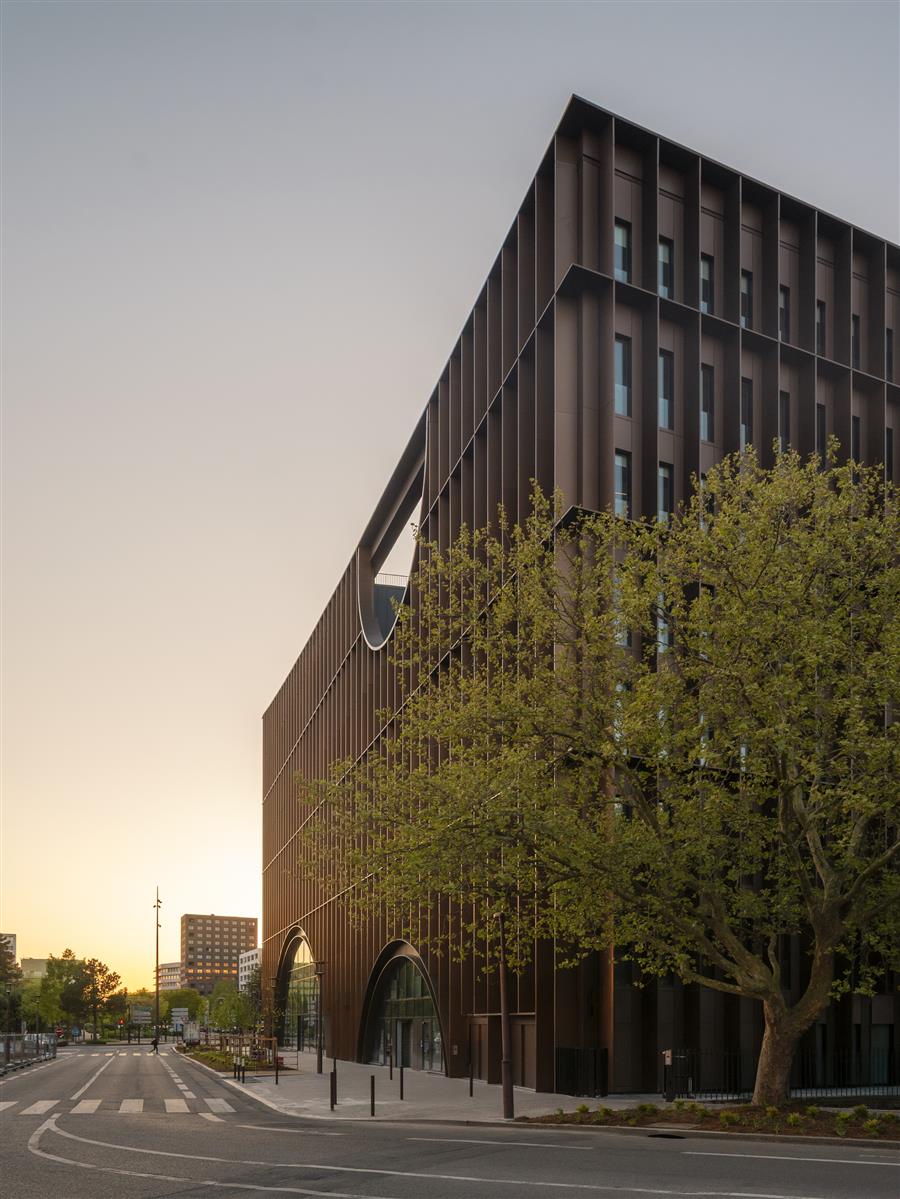

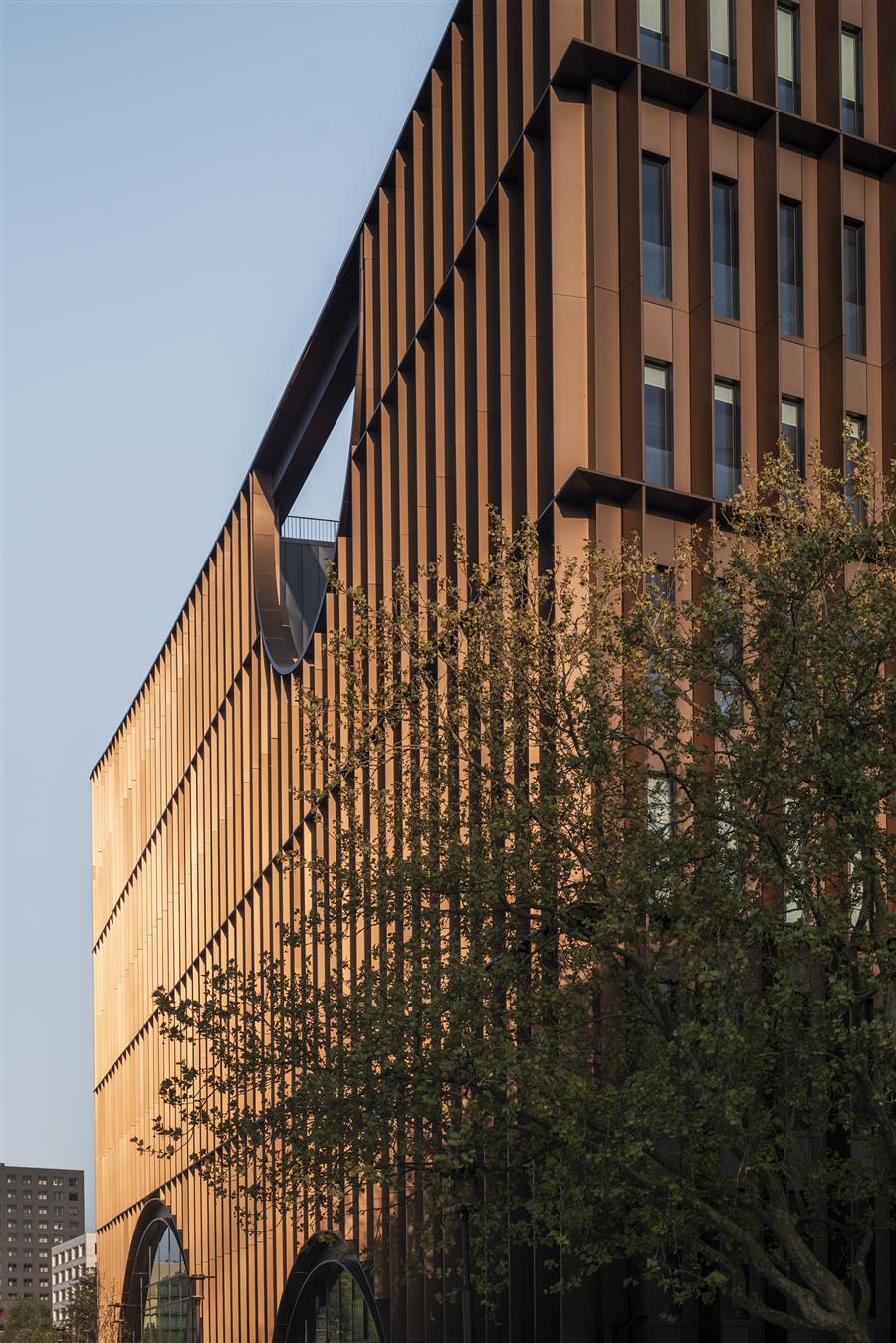

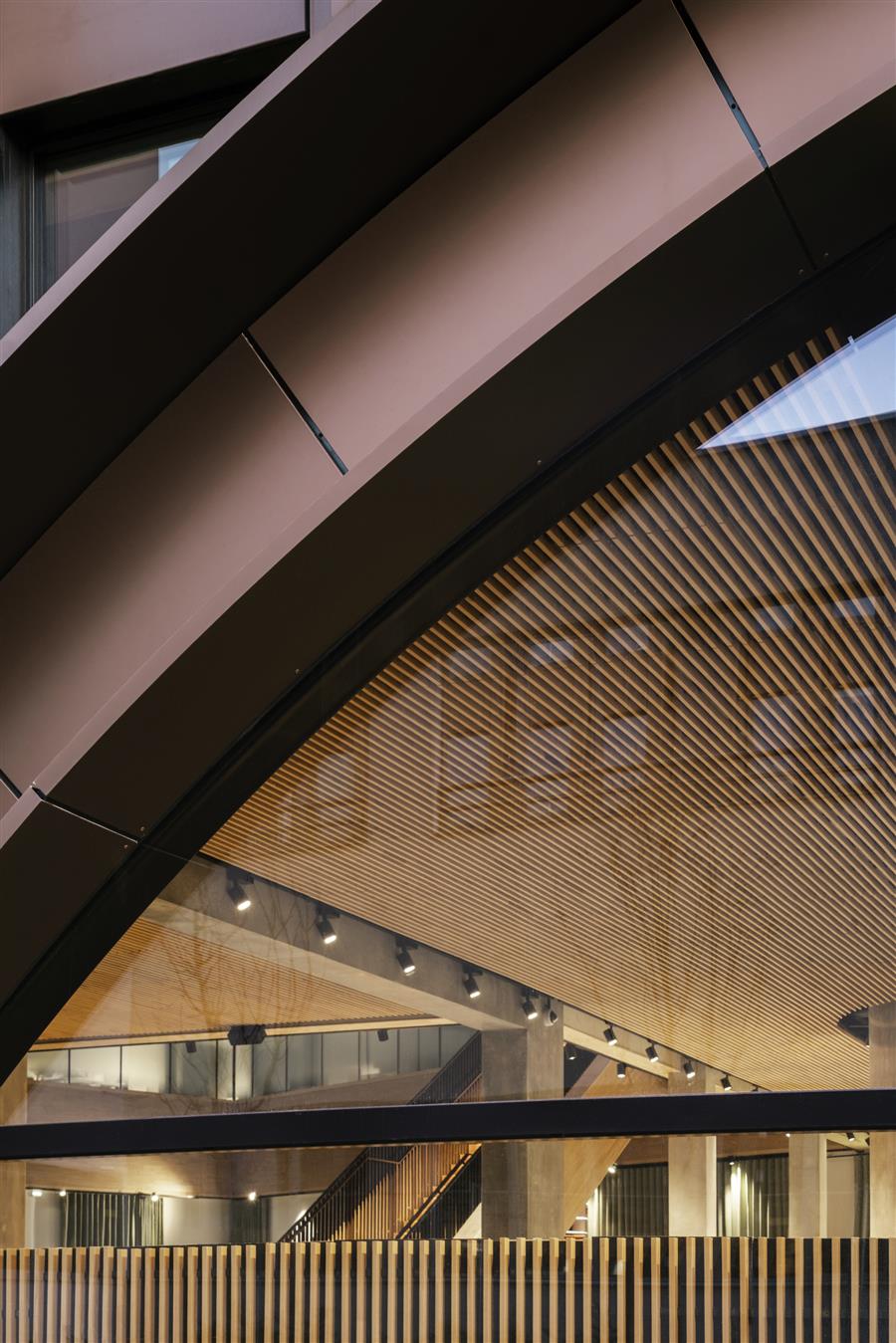

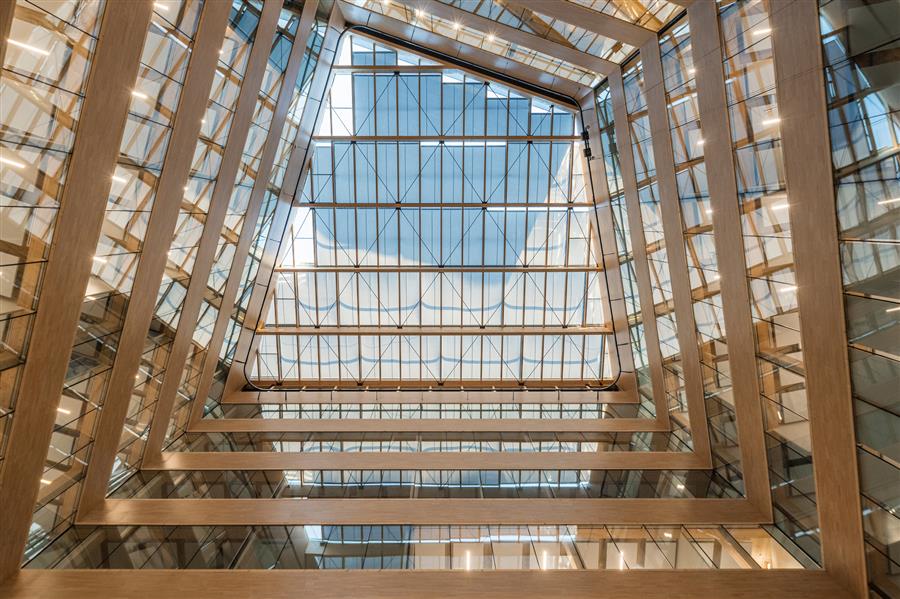

法国建筑风格与南特这座城市的联系是通过抽象手法实现的。这种方式避免了陈旧的视觉形象,为未来的想法留出了空间。正是建筑形式的优雅使其成为焦点;是内部庭院的宏伟布局让我们忘却了典型投资者的狭隘思维。是建筑外立面和结构中的扇形拱门让人联想到卢瓦尔河上的桥梁。这种建筑风格能给观者带来联想,但不会通过图像强制传达这些联想。The connection to the past of French architecture and the city of Nantes is achieved through abstraction. This avoids conservative images and opens up the space for ideas for the future. It is the elegance of the form that makes the building a focal point; it is the grand gesture of the inner courtyard that makes us forget the narrow-mindedness of typical investors. It is the segmental arches in the façade and construction that are reminiscent of the bridges over the Loire. The architecture offers viewers associations without compulsively conveying them through images.

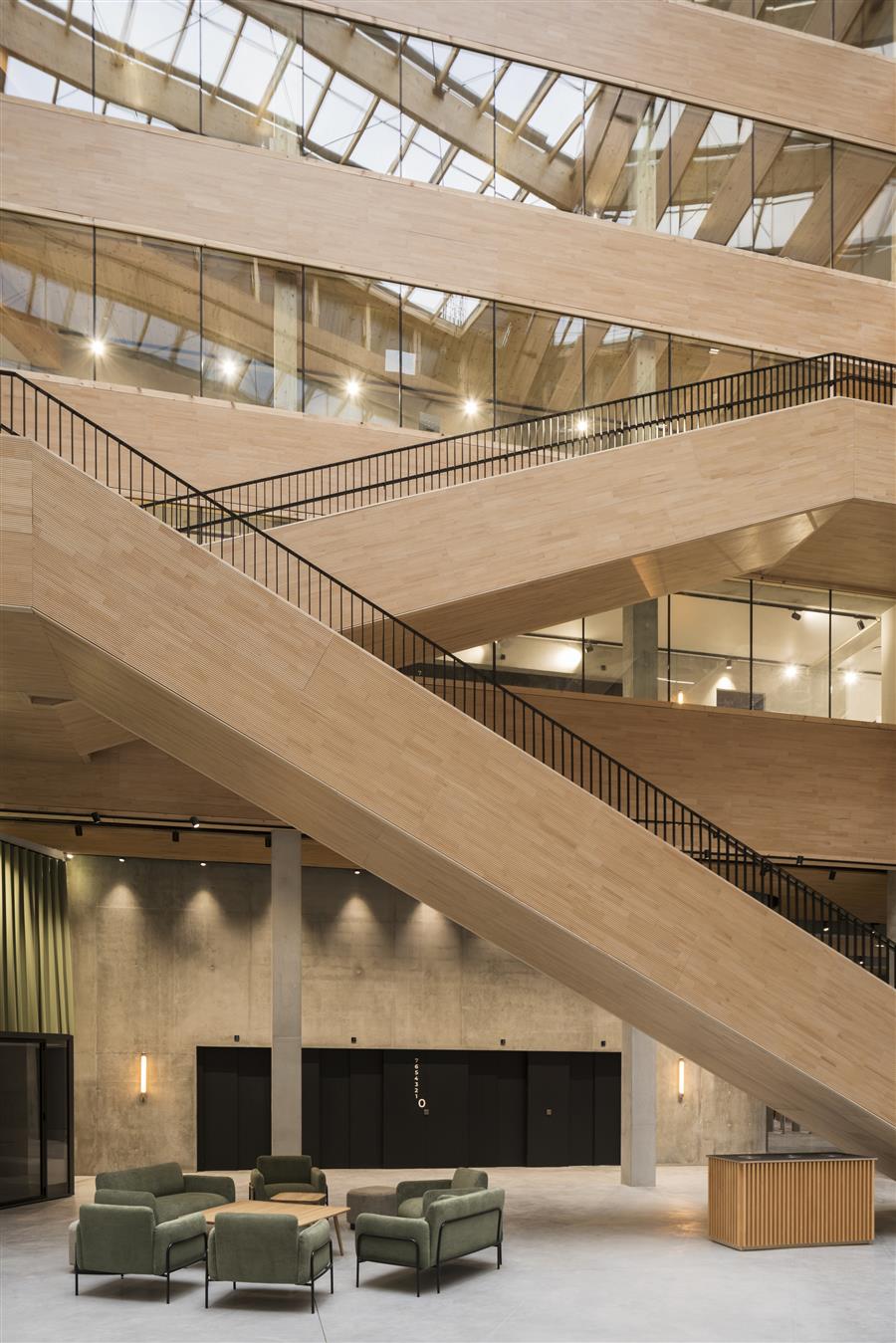

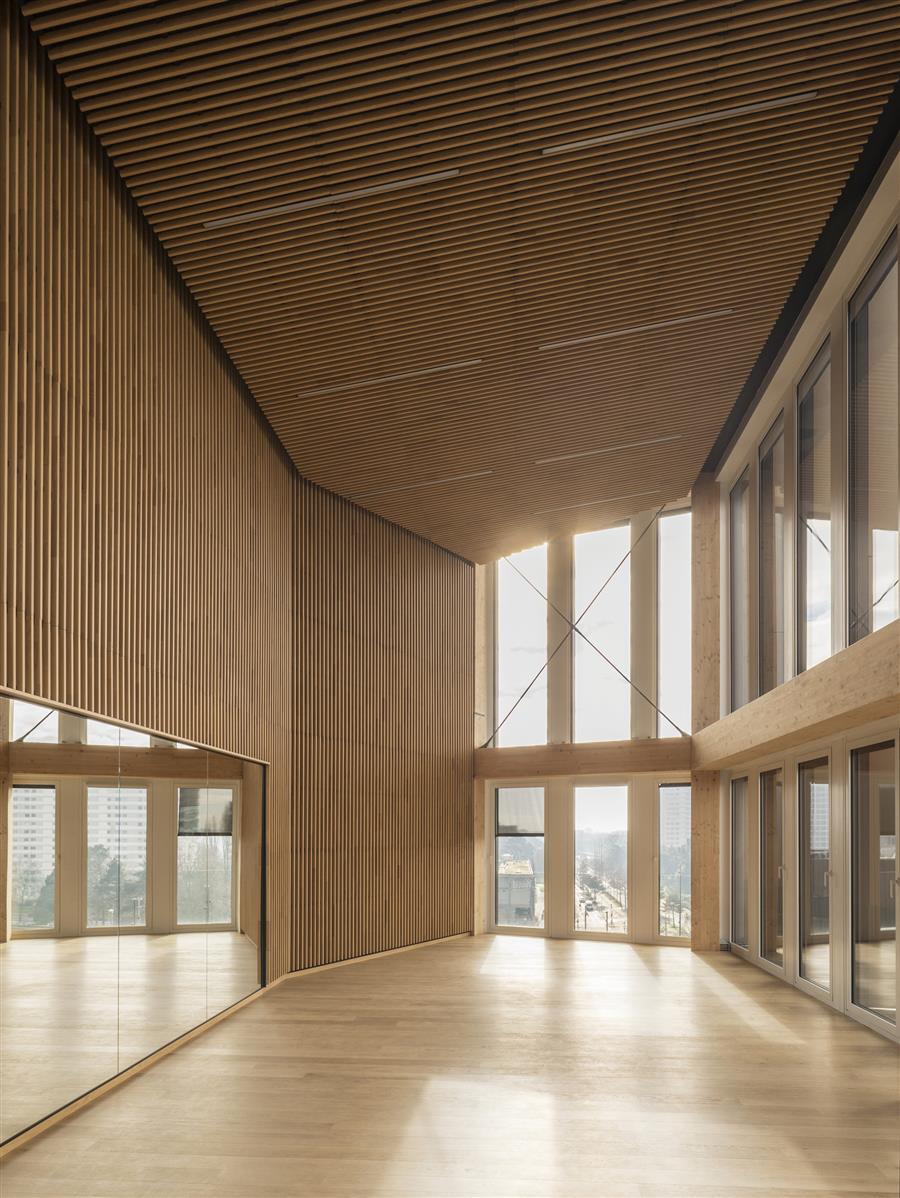

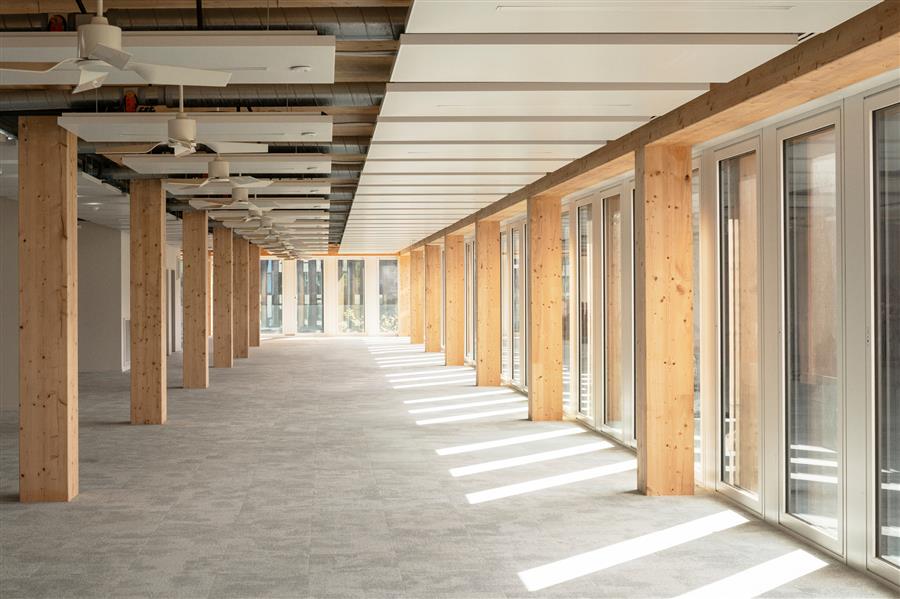

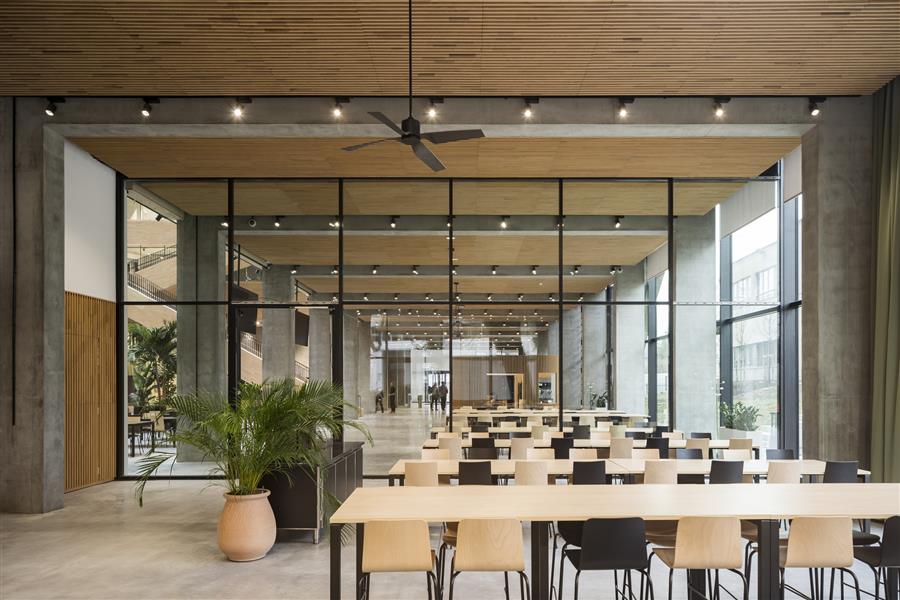

这座建筑让我们得以一窥未来的工作场景:它注重交流,旨在将城市空间与自然空间连接起来。而且,不可忽视的是,它还具有舒适和氛围方面的特点。户外区域和私密的交流区域都十分舒适,而实木的质感则为整体氛围增色不少,让无形的东西变得有形可感。The building offers a glimpse into the working world of the future: it is open to communication and designed to connect urban and natural spaces. And, not to be forgotten, it is also characterised by comfort and atmosphere. The outdoor areas and intimate meeting areas are comfortable, while the feel of solid wood contributes to the atmosphere, allowing the visible to become tangible.

这种综合方式使得建筑更具可持续性:建筑不仅仅是技术敏感性的数字游戏。它能赢得人们的认可和喜爱。那些受到喜爱的建筑能够拥有更长久的使用寿命,因为它们深深扎根于人们之中。This synthesis makes the architecture particularly sustainable: architecture is more than a numbers game of technical sensitivities. It generates acceptance and appreciation. Buildings that are appreciated live particularly long lives because they are anchored in people.

项目图片

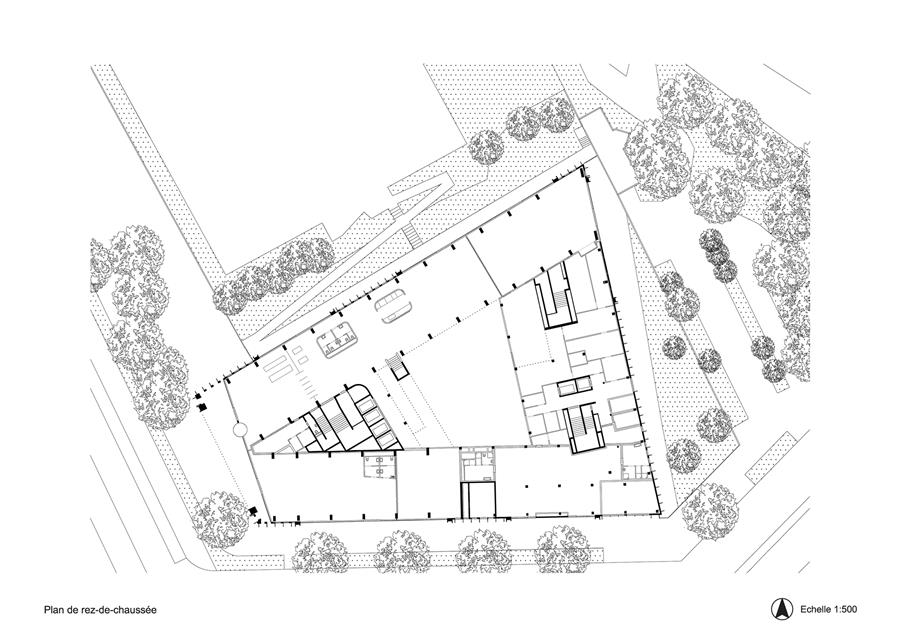

▲平面图

简介:一座融合了独特建筑风格与现代办公设计的新办公楼将建在格勒诺布尔火车站附近以及欧罗波尔商业区。Brief: A new office building combining distinctive architectural character and contemporary office design was to be built close to Grenoble's station and Europole business district.
实景展示:该建筑位于一个开发区的入口处,是欧罗波尔与城市复兴计划中的新建筑之间的连接点。从铁路轨道上望去,这座建筑与周边的城市景观完美融合,还能欣赏到格勒诺布尔周边乡村的壮丽景色。弯曲的外立面沿着街道边缘延伸 110 米,从地面到六楼形成了宽敞的露台。Realization: Located at the entrance to a development zone, it forms the interface between Europole and the new constructions of the city's regeneration program. Visible from the railway tracks, the complex blends seamlessly into the surrounding urban landscape and offers spectacular views of the countryside around Grenoble. The bowed facade runs 110 m along the street edge, shaping generous terraces from the ground to the sixth floor.

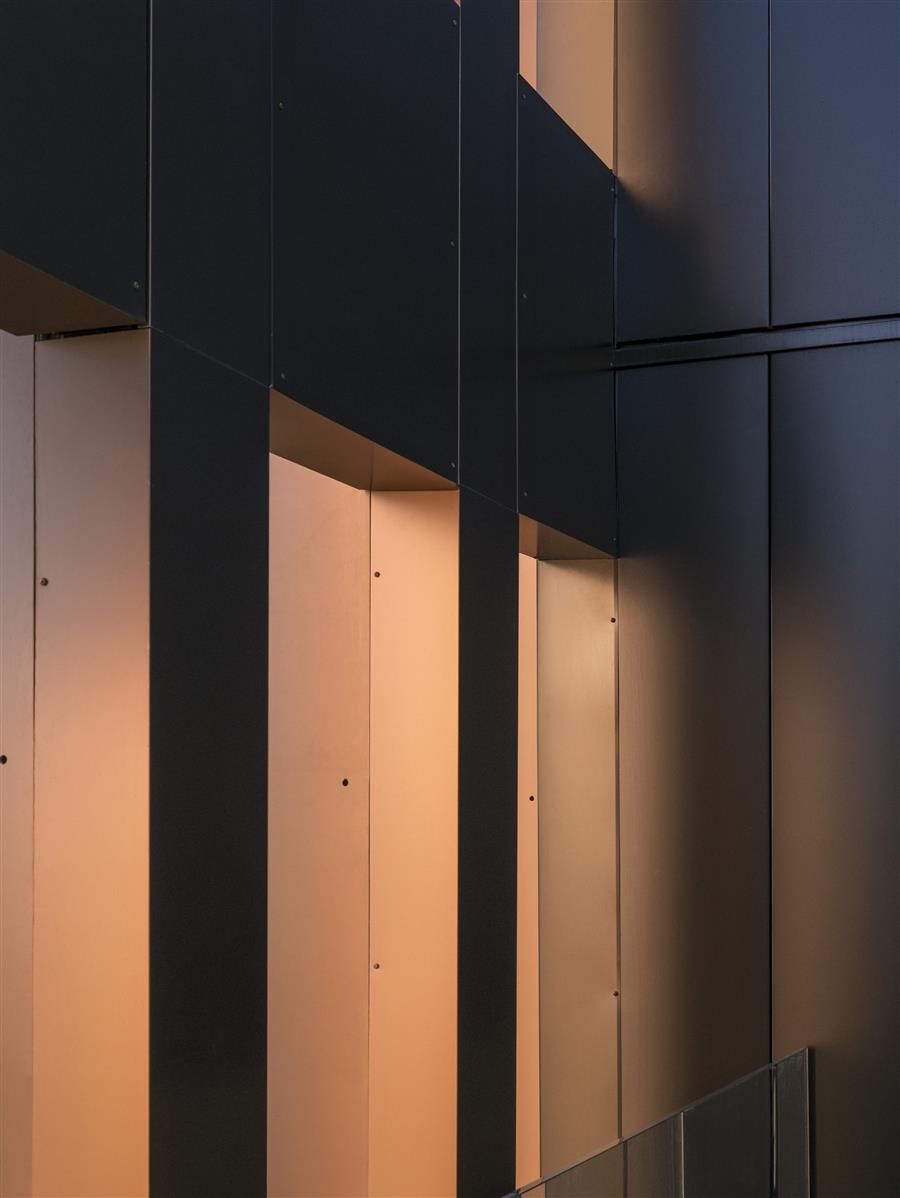

特点:建筑的外立面塑造了其独特的建筑风格,并具备良好的气候调节功能。浅色的现浇混凝土有助于缓解城市热岛效应,而悬挑的板边和混凝土脊柱则能增强遮阳效果。Features: The facades create the building's architectural character and supply climate functionality. The pale cast-in-situ concrete helps counteract urban heat islands, while overhanging slab edges and concrete spines improve shading.

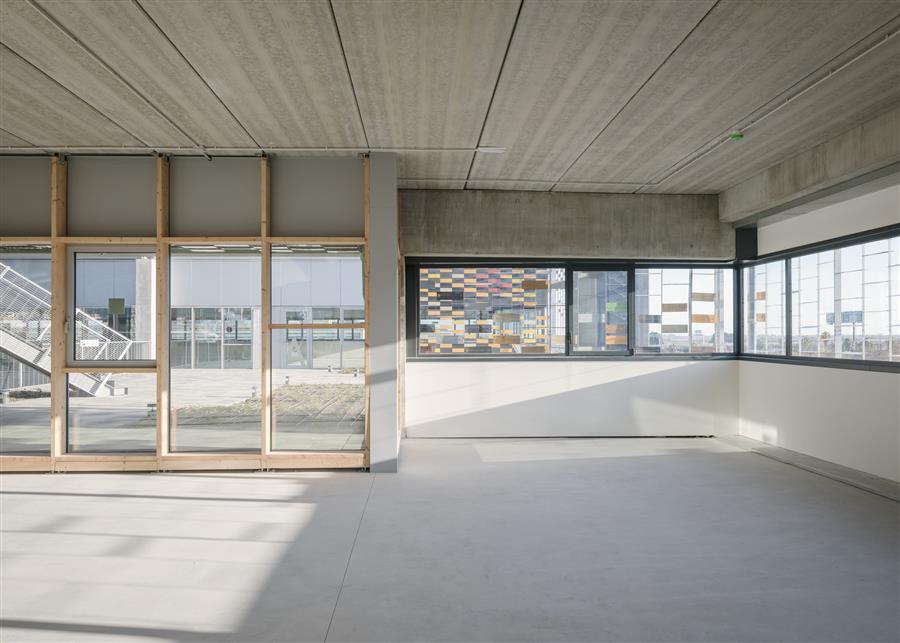

这种混凝土结构既保证了在不断变化的需求面前的灵活性,又通过混凝土柱和玻璃框架系统与自然建立了联系。面向公众开放的活动地面层变成了一个充满活力的空间和公共聚会场所。而在其他地方,沿外墙设置的露台可用作用餐区,而花园内则设有舒适的座椅。The concrete structure guarantees both flexibility in the face of evolving requirements and a connection to nature through the system of concrete columns and the glazed frame. Open to all, the active ground floor becomes a dynamic space and public meeting place. Elsewhere, a terrace along the facade serves as an eating area, and the garden contains comfortable seating.
技术图纸
▲平面图


5月30日,深圳人期待已久的艺术新地标正式面向公众开放!
深圳国际美术馆位于光明科学城中心区,地处科学公园南侧,与深圳科技馆新馆、科学城体育中心一道,构成湾区科学文化的新地标集群。


项目用地面积约5.3万平方米,总建筑面积约13.5万平方米,建筑高度53.5米,主体地上七层(局部设夹层)、地下二层,总投资约24.44亿元,是中国首座专门展示国际优秀艺术的美术馆。




项目由中国工程院院士崔愷领衔、中国院总建筑师于海为团队设计,秉持“和合环境、专业融汇、复合多元、传承经典”理念,实现建筑、功能与景观的深度融合。
设计取意“同舟并济”,南北两馆并置,仿佛一艘联通东西方文明的“文化方舟”。




南馆面向城市,以厚重石材砌筑,强调经典与永恒,呼应西方艺术的庄重感;北馆朝向公园,采用轻盈的金属幕墙,流动通透,传递东方美学的意境。一实一虚、一重一轻、一方一曲,对比之中达成和谐,让“对话”成为空间的灵魂。




两馆共筑于同一基座之上,主入口设在基座平台,与公园、科技馆景观相连。首层向城市敞开,通廊商街连通道路与公园,画廊、商铺嵌入其中,让艺术融入日常步履。
中央大厅串联南北两馆,城市高楼与自然远山、东方意境与西方经典于此交汇。悬挂的月影艺术装置以参数化设计呈现月晕般渐变光影,可模拟月相变化,成为视觉焦点。




美术馆共设15个国际标准展厅,配备1.2万平方米专业藏品库房、700座室内剧场及户外剧场、200座报告厅及图书文献中心,并配套商业空间,形成集展览、美育、典藏、交易、文化体验于一体的综合功能。


这座“艺术方舟”的落成,将为深圳建设全球区域文化中心城市注入强劲动能。


姜谷粉丝 2026-06-05 09:34
提到的三个建筑项目,Delta商务中心和法国·创新之家办公室的详细信息,暂未找到“新美术馆”的公开报道(可能是项目尚未公开或名称表述存在偏差),以下是前两个项目的核心信息整理:

一、Delta商务中心(Picharchitects/Pich-Aguilera设计)
基本信息:位于西班牙,建筑面积11326㎡,2025年建成,由Picharchitects(Pich-Aguilera)设计。
核心设计理念:重新定义企业建筑的“战略价值”,以降低运营成本、适应未来变化、长期保值增值为目标,平衡生态延续性与高性能企业建筑需求。
空间与生态特色:
项目原址为沼泽地,保留900㎡原始地形与植被,建筑以悬挑体量高悬于地面,释放下方空间作为“主动气候基础设施”,实现自然水管理、生态连续性优化。
办公空间采用灵活平台布局,通过自然采光、外部步道、生物气候庭院连接,支持企业未来空间重组或转型,降低建筑过时风险。
价值亮点:将建筑从“成本中心”转化为“战略资产”,通过生态与功能的融合,应对商业模式迭代、监管压力及运营成本增长挑战。
二、法国·创新之家办公室(Baumschlager Eberle Architekten设计)
基本信息:位于法国南特,建筑面积8391㎡,2024年建成,由奥地利建筑事务所Baumschlager Eberle Architekten设计。
核心设计理念:以高品质设计、可持续发展、舒适环境为核心,打造“未来工作场景”的标杆,同时呼应法国建筑传统与城市文脉。
建筑特色:
抽象化法式风格:外立面扇形拱门灵感源自卢瓦尔河桥梁,以抽象手法连接法国建筑传统与城市记忆,避免保守意象,为创新思维留出空间。
空间与氛围:内部以宏伟庭院为核心,户外交流区与私密会议区兼具舒适性,实木材质强化温暖氛围,实现城市空间与自然空间的无缝连接。
可持续价值:建筑不仅是技术参数的堆叠,更通过空间设计与材料选择,实现员工体验、城市功能与生态可持续的综合平衡。
关于“新美术馆”的补充说明
目前搜索结果中未匹配到“新美术馆正式开放”的相关权威信息,可能是以下情况:

项目处于筹备阶段,尚未公开报道;
名称表述存在偏差(如“深”可能指“深圳”“深度”等,需补充完整名称);
为地方性小型项目,未进入主流建筑资讯平台。
